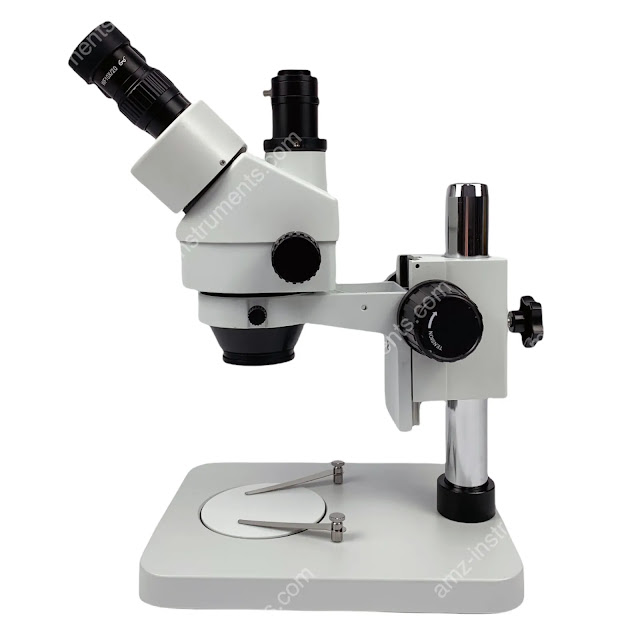

Trinocular head stereo microscope ZM-2TD1 ( ZOOM 7045), WF10x/20 eyepieces, 7X - 45X, plain stand with LED ring illumination LED-60T

 AMZ ZM-2TD1( ZOOM7045)-  With LED-60T ring light

SKU=  AMZ-ZM-2TD1-ZOOM7045

(note= AMZ ZM-2TD1 is same specs as BW-2TD1-ZOOM7045)

 -  Trinocular head stereo microscope, WF10x/20 eyepieces, 7X - 45X, plain stand with LED ring illumination LED-60T

● Trinocular Head: 45 degree inclined 360° rotatable
● Interpupillary Distance Adjustment: 55-75mm
● Diopter Adjustment: ±5dp
● Eyepiece: WF10x/20mm
● Zoom Objective: 0.7x-4.5x
● Zoom Ratio: 1:6.4
● Magnification: 7x-45x
● Working Distance: 100mm
● C-mount Adapter: 1x
Base:
● Vertical Post Height: 240mm
● Vertical Post Diameter: φ32mm
● Microscope Body Holder: φ76mm
● Focus Travel: 50mm
● Stage Plate: φ95mm black white contrast plate
● Base Size: 200x255x22mm
● Material: Metal



 Zoom7045 Series Zoom Stereo Microscope High quality optical performance, various accessories and diversified combination specification. To meet high-precision requirements on modern biology, medicine, scientific research, inspection lines in modern electronics and other technology industries.
·        High quality optical system, and optical components coated with special coating created a high-quality optical system.

·        Standard magnifications 7X~45X. Use optional auxiliary lens, the magnification can be 3.5X~180X.

·        Long working distance to create enough space for the uses.
·        Suit to ergonomic design, feel less fatigue when long time use.

Technical Specifications

eyepiece	high eye point wide field eyepiece WF10X/20mm ( can be mounted micrometer )
	high eye point wide field eyepiece WF15X/15mm ( can be mounted micrometer )
	high eye point wide field eyepiece WF20X/10mm ( can be mounted micrometer )
observation head	Zoom7045: binocular head , 45 ° tilt, continuous zoom lens 0.7X-4.5X, working distance 100mm. pupillary distance adjustment range of 54mm-76mm, depending on the degree of bilateral adjustable ± 5 diopter .
	Zoom7045TR tee viewing head . 45 ° tilt , 360 ° rotation ; photographic camera can be equipped with the interface
	Zoom7045V digital viewing head , built-in 3 million pixel CCD
auxiliary lens	0.5X/165mm. 1.5X/45mm. 2X/30mm.
focus brackets	A1 focus frames, focusing hand wheel adjustable elastic , lifting range 50mm.
	A3 industrial binding Focus Frame 2 ( industry-specific )
other external sources	ring light / LED light / cold light illumination
photography device	Photography connected tube ( with PK bayonet ), 3.2X photo eyepiece
imaging device	0.35X/0.5X/1.0XC type camera connected tube

#microscope #microscopephilippines #stereomicroscope #lagunastarindustries #magnifier

 ===

1. notes:



- 1 set=  Trinocular head stereo microscope Zoom7045, WF10x/20 eyepieces, 7X - 45X, plain stand with LED ring illumination LED-60T .

- Its default ring light is the LED ring light LED-60T.  But i can also fit the Microscope Fluorescent Ring Light 8W- white light MFFRL-8W

 - you can put here (optional) 5.1 MP C-Mount CMOS Camera with 0.5X c-mount and measurement software  BW-5.1CMOS



2. more photos & unboxing:



NK-X40 Laboratory Biological Microscope

 NK-X40 Laboratory Biological Microscope





Specs:

- Infinity color corrected optical system, new upgraded Koehler illumination system, presents a clear & bright micro-image

under each magnification.

- Fire-new ergonomic design, steady system structure, easy operation, is suitable for various working environments.

- "Building blocks" design for combining multiple functions, fluorescence, phase contrast, polarizing, dark field attachments

can be assembled on the   basis of bright field observation.

- Widely apply to clinical diagnosis, teaching experiment, pathological test and other micro-fields

Optical system	Infinity color corrected optical system
Viewing head	Efficient infinity gemel binocular head, 30°-60°elevation adjustable; 360°rotatable; interpupillary adjustable distance: 54-75mm; diopter +/-5 adjustable.
	30° inclined gemel binocular head; 360° rotatable; interpupillary adjustable distance: 54-75mm; diopter +/-5 adjustable.
	30° inclined gemel trinocular head, splitting ratio R:T=50:50; 360° rotatable; interpupillary adjustable distance: 54-75mm; diopter +/-5 adjustable.
	30° inclined gemel trinocular head (special for fluorescence), splitting ratio R:T=100:0 or 0:100; 360°rotatable; interpupillary adjustable distance: 54-75mm; diopter +/-5 adjustable.
	30° inclined digital binocular head; 360° rotatable; interpupillary adjustable distance: 54-75mm; diopter +/-5 adjustable.
Eyepiece	High eye-point wide field plan eyepiece PL10x22mm, reticle can be assembled.
	High eye-point wide field plan eyepiece PL15x16mm
Objective	Infinity plan achromatic objectives (2X,4X,10X,20X,40X,100X)
	Infinity plan phase contrast objectives (10X,20X,40X,100X)
	Infinity plan semi-apochromatic fluorescence objectives (4X,10X,20X,40X,100X)
Nosepiece	Revolving quadruple nosepiece/ quintuple nosepiece
Body	Coaxial focus system with upper limited and tension adjustment; coarse range: 30mm; fine precision: 0.002mm; focus height adjustable.
Stage	175x145mm double layer mechanical stage, rotatable; with special fabrication processing, anti-corrosive and anti-friction; X,Y moving hand wheel in right or left hand; moving range: 76x50mm, precision : 0.1mm.
	187x166mm double layer mechanical stage, moving range: 80x50mm, precision: 0.1mm.
Condenser	N.A.0.9 swing-out type achromatic condenser, N.A.1.2/0.22 swing-out type achromatic condenser N.A.1.25 quintuple phase contrast condenser N.A.0.9 dry dark field condenser N.A.1.25 oil dark field condenser.
Transmitted illumination system	Wide voltage: 100-240V, built-in transmitted Koehler illumination; 6V/30W halogen, pre-centered, intensity adjustable.
Polarizing kit	Analyzer 360° rotatable; polarizer and analyzer can be out of light path.
Filter	Yellow, green, blue, neutral filter
Light splitting device	R:T=70:30 or 100:0, special 1x CTV
Camera adapter	0.5xCTV, 0.67xCTV, 1xCTV

Zoom Stereo Microscope AMZ ZM-2BD1

AMZ ZM-2BD1 0.7-4.5X Zoom Stereo Microscope



1. Excellent Image Quality & Optical Performance with Optical System.
2. Comfortable Operation with Ergonomic Design Principle.
3. A Wide Range of Accessories to be Equipped with the Microscope for Multi-purposeIt is an Outstanding
4. Assistant in Industrial, Medical and Scientific Research Areas

Model: ZM-2BD1

1.View head 45 degree inclined Pupillary adjust distance:55-75mm
2. Zoom ratio:1:6.4
3. Eyepiece:WF10x/20mm
4. Zoom objective:0.7x-4.5x
5. Magnification:7x-45x,  auxiliary objective can make magnification to 3.5x-180x

6.working distance:105mm

7.pillar stand height: 245mm
8.base size: 210mm x 260mm x 45mm

Eyepieces	Standard		Auxiliary lens 0.5X		Auxiliary lens 1.5X
	Working distance 100mm		Working distance 165mm		Working distance 45mm
	Magnification view field	Field of view	Magnification view field	Field of view	Magnification view field	Field of video
10X/20mm	7.0X	28.6mm	3.5X	57.1mm	10.5X	19mm
	45.0X	4.4mm	22.5X	8.9mm	67.5X	3mm
15X/15mm	10.5X	21.1mm	5.25X	42.8mm	15.75X	14.3mm
	67.5X	3.3mm	33.75X	6.7mm	101.25X	2.2mm
20X/10mm	14.0X	14.3mm	7.0X	28.6mm	21.0X	9.5mm
	90.0X	2.2mm	45.0X	4.4mm	135.0X	1.5mm

Accessories:

Eyepieces: WF10X/20mm, WF15X/15mm, WF20X/10mm

Auxiliary lens: 0.5X/165mm. 1.5X/45mm. 2X/30mm.

Light sources: LED ring light, cold light illumination
